The fundamentals of decoupling capacitors

20 years in the past, to construct a transportable music participant, you needed to clobber collectively a number of hundred digital elements. Immediately, you may accomplish the identical with a single chip and a dozen passives. Heck, you would possibly even get Wi-Fi and Bluetooth without spending a dime.

One of many few discrete elements that survive and thrive within the face of rising integration is the standard decoupling capacitor. It’s not simply that the machine is tough to fabricate on the die of an built-in circuit; on the planet excessive information speeds and low provide voltages, it has an more and more essential function to play in retaining the circuits buzzing alongside.

Amongst hobbyists, the understanding of decoupling caps continues to be hit-and-miss. Some of us skip them altogether and reside to inform; others observe historic lore of unsure origins, producing monstrosities resembling this:

On this article, I’m hoping to solid some mild on the precise function of decoupling capacitors in digital circuits — and to supply recommendation on tips on how to combine them into your designs with out going overboard.

In a gentle state, a typical CMOS built-in circuit wants little or no energy. The chip’s power consumption is related predominantly with state transitions — that’s, toggling between “zero” and “one”. That’s as a result of the method requires transferring electrons forwards and backwards to cost or discharge the gates of area impact transistors contained in the chip.

Some inside state transitions require comparatively little present, however others are extra demanding; that is significantly true for the operation of bigger transistors that drive output strains. To toggle them at at megahertz speeds — a activity that calls for fast rise and fall instances — the chip should momentarily supply important currents; the phenomenon lasts simply picoseconds or nanoseconds, however can contain fairly a couple of amps.

This poses a problem. At excessive currents, PCB traces exhibit each resistive losses and inductive coupling; the demand response traits of the facility provide additionally get in the way in which. In the long run, even seemingly minor digital switching may cause important voltage fluctuations and electrical noise throughout the whole circuit.

The next oscilloscope plot exhibits the impact of an AVR microcontroller repeatedly toggling a few unconnected output pins whereas working on the comparatively low velocity of 8 MHz:

The height-to-peak amplitude of this noise, as sampled on the MCU provide pins, is sort of 2 volts — about 40% of the nominal provide voltage. This in itself will be sufficient to destabilize the MCU. Simply as essential, as a result of the chip now not has a secure Vdd and GND reference shared with different elements of the circuit, interfacing it to different units would possibly show troublesome. It’s not that this setup is sure to malfunction, however unexplained and hard-to-diagnose points can creep up with ease.

This brings us to the aim of decoupling capacitors: they’re positioned throughout the voltage provide strains and bodily near the offending chip to deal with switching transients whereas stopping excessive currents and minimizing voltage fluctuations in different elements of the circuitry.

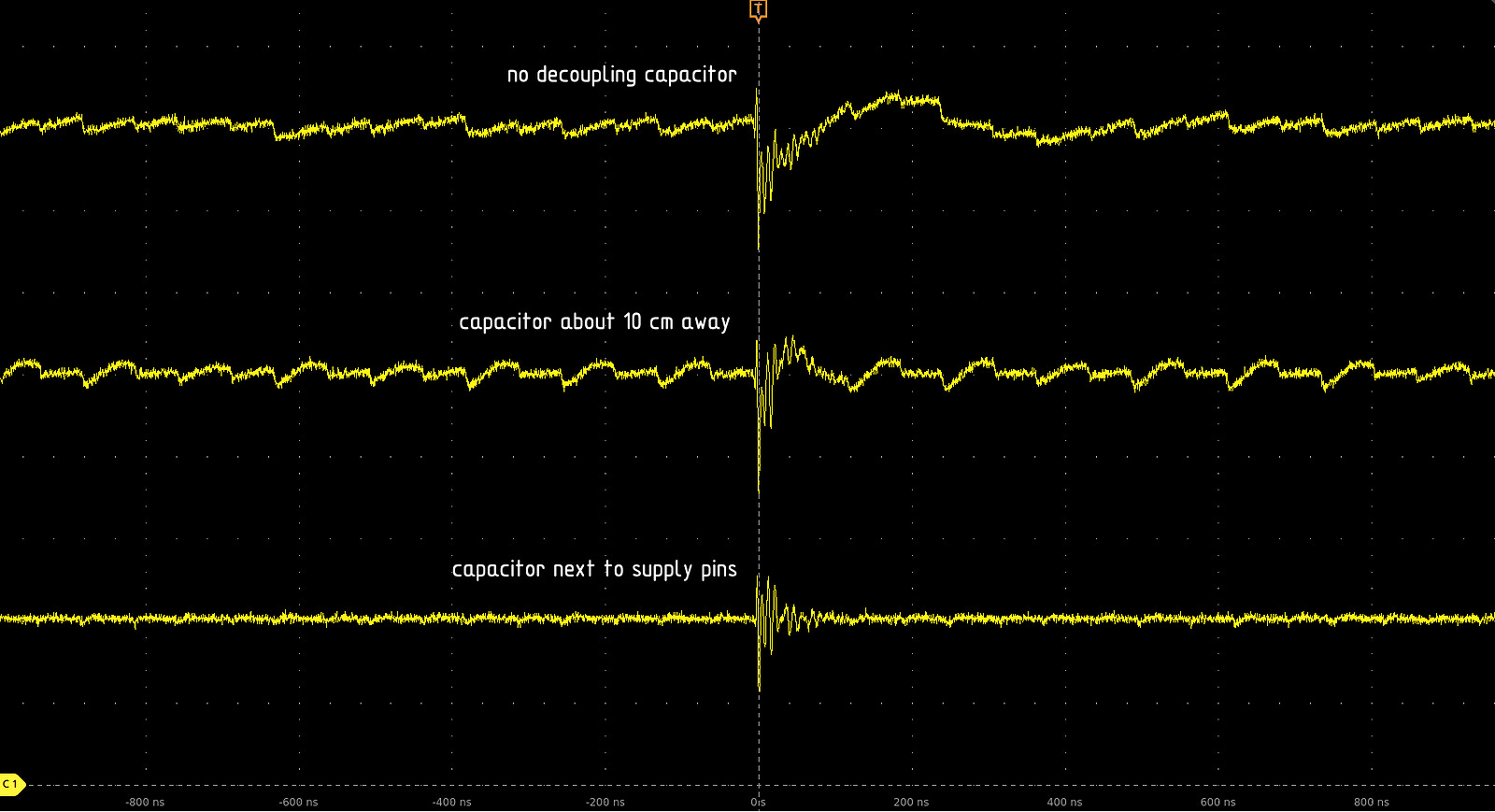

To do that, the capacitors will need to have low impedance (i.e., have the ability to cost and discharge rapidly); for that reason, multilayer ceramics (MLCCs) ought to be used as an alternative of the comparatively sluggish electrolytic caps. However above all, to work successfully, the capacitors should be as shut as sensible to the chip’s provide pins. The next oscilloscope hint illustrates the purpose:

The sizing of the capacitors will not be important; a single 100 nF MLCC, operated properly away from its most voltage, is often sufficient to cope with all intrinsic switching currents of PIC, AVR, or ARM microcontrollers. Extra capacitance is perhaps applicable if the MCU is driving substantial masses. This may be completed with a single bigger MLCC (e.g., 1 or 10 µF); with a number of smaller MLCCs in parallel; or with a small fast-acting MLCC coupled with a bigger however slower aluminum-polymer cap (10-100 µF), the latter probably positioned a ways away.

A well-chosen decoupling capacitor can tremendously scale back switching noise, however the machine has a finite capacitance and a non-zero impedance (growing not solely towards DC but in addition towards very excessive frequencies — the latter on account of parasitic inductance). In different phrases, some attenuated noise will nonetheless get by.

In delicate circuits, the issue of high-frequency noise will be additional mitigated by putting a small ferrite bead consistent with the availability and forward of the decoupling caps. The inductor offers a low impedance path (few milliohms) for DC alerts whereas impeding megahertz-range AC a lot better than a capacitor can. Right here’s an instance from the spec for SAM S70 MCUs, recommending the usage of two beads with an impedance of 470 Ω at 100 MHz on the availability strains for the USB transceiver and the phase-locked loop (PLL) clock multiplier:

It ought to be underscored that the association doesn’t remove switching noise; it merely accommodates it to the part between the MCU and the decoupling capacitor, defending the remaining elements of your circuit. That is analogous to the usage of ferrite EMI filters mounted on some cables and located inside high quality energy provides.

A associated trick is to place ferrite beads on MCU output strains; this takes the sting off fast-rising sq. wave alerts, and might scale back pointless inrush currents when working slower buses resembling I²C or SPI.

The datasheets for some digital chips will define a recommended manner of decoupling them. These suggestions shouldn’t be ignored, however are to not be taken as gospel. The producer is making an attempt to cowl a wide range of extremes, together with:

• Circuits operated on the lowest permissible provide voltage,

• Units working on the most supported clock velocity,

• Peak utilization of on-chip peripherals,

• The shopper utilizing the worst decoupling capacitors cash should purchase (e.g., the “Y5V” selection that loses ~80% of rated capacitance when operated at elevated temperatures or close to the cap’s most voltage).

Additional, the producer is making assumptions about prospects’ design preferences. A typical 100 nF MLCC prices about $0.005 a bit; in distinction, a ten µF aluminum-polymer cap is about $0.25. A buyer doing robotic meeting would possibly favor a dozen MLCCs in lieu of a single MLCC paired with a polymer capacitor. A hobbyist soldering by hand may not.

As an alternative of blindly following the spec — a apply that also doesn’t assure success — it might probably extra helpful to validate your design in 3 ways:

• Study circuit provide noise underneath regular working situations. If the peaks exceed most permissible provide ripple, minimal provide voltage, or most provide voltage for the digital elements, it’s best to enhance the design.

• If related in your venture, affirm that alerts on any high-speed output busses (e.g., USB) look appropriate, particularly by way of anticipated rise and fall instances, noise, and any periodic glitches. Oscilloscope “eye diagrams” might help.

• As a last take a look at, observe the circuit with IC provide voltage decreased 10-20% from the design objective. If the digital circuitry continues to function accurately, you possible have security margin in relation to switching noise.

There may be this outdated adage that for optimum decoupling, you need to mix not less than three capacitors, one or 20 years (orders of magnitude) aside. The precise development of advisable values adjustments from one oral account to a different, however the backside line is that in case you don’t heed the warning, some horrible destiny awaits.

The recommendation made some sense again when every of those capacitors could be made in a special expertise. The bottom capacitance could be ceramic, providing low impedance however not packing sufficient punch to easy out longer-lasting flukes; the center cap could possibly be tantalum, providing balanced efficiency however not excelling in any dimension; and the final one could be aluminum electrolytic, delivering poor high-frequency response however storing fairly a little bit of juice.

Immediately, low-cost MLCCs mix excessive capacitance and low impedance throughout a variety of frequencies, so there’s often little to be gained by taking part in such methods — not less than not for circuits working at “pastime” speeds. A single 100 nF or 1 µF MLCC per every functionally distinct digital voltage provide line is sort of at all times sufficient.

It’s true that at very excessive frequencies — tons of of megahertz — the capacitor’s residual inductance turns into a limiting issue. At that time, combining a number of completely different capacitors can supply considerably higher wideband noise suppression on the expense of doubtless creating undesirable anti-resonance peaks within the system (rendering it ineffective at coping with a handful of different frequencies). That stated, a less complicated resolution with fewer unwanted side effects is to make use of a specialised low-inductance (“low-ESL”) MLCC.
